FJDynamics Paint Master Pro
$19,999.00
Professional Field Marking. Automated.
Take the measuring, stringing, and repetitive walking out of sports-field marking.
The FJDynamics PaintMaster Pro is a professional autonomous line-marking robot designed for schools, sports clubs, contractors, municipalities, and multi-field facilities. Create field layouts digitally, send the job to the robot, and let PaintMaster Pro handle consistent marking while your crew moves on to higher-value work.
Up to 5-hour runtime
6–17 cm adjustable line width
20 L paint capacity — expandable to 25 L
Multi-field & fleet management
Custom logos and layouts
Smart Field Management
PaintMaster Pro works with the broader FJDynamics turf-management ecosystem.
FJD GreenMaster provides device tracking, map management, task dispatching, route planning, and fleet coordination.
V4e Easy Mapping can help create field maps without needing to drive the robot around the full site.
N10 CORS can provide RTK correction data for compatible high-precision positioning workflows.
FJD PaintMaster Simulator lets operators preview and validate marking paths before sending the robot onto the field.

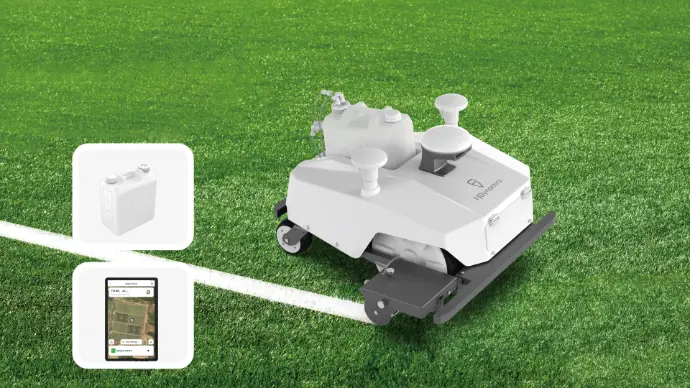

Designed for Easy Operation
PaintMaster Pro is built around practical field use:
- Independent paint filling port
- Easy paint-bucket changes

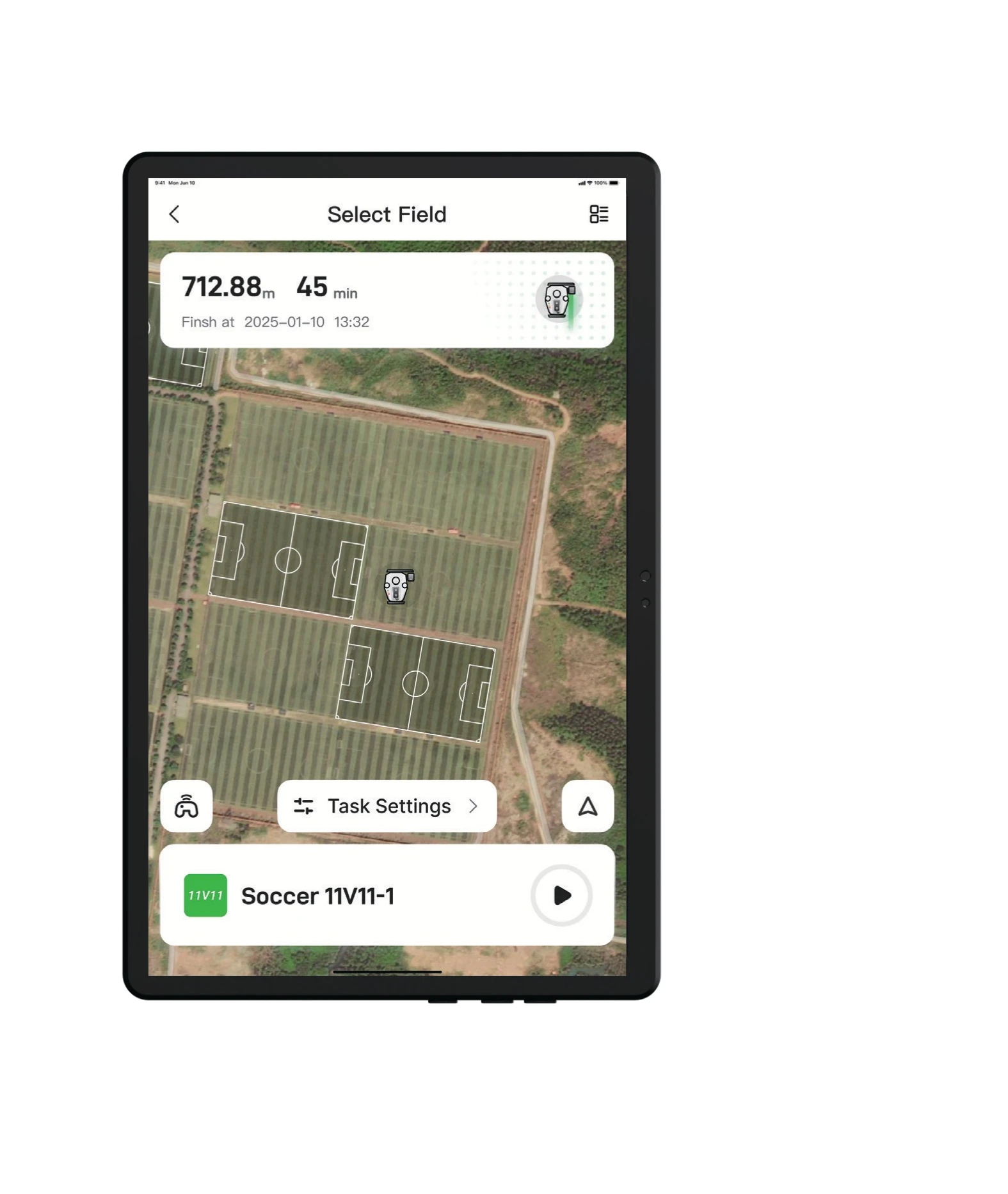

- Standard operation tablet
- Remote status monitoring
- Live image feed
- Front and rear bumper protection

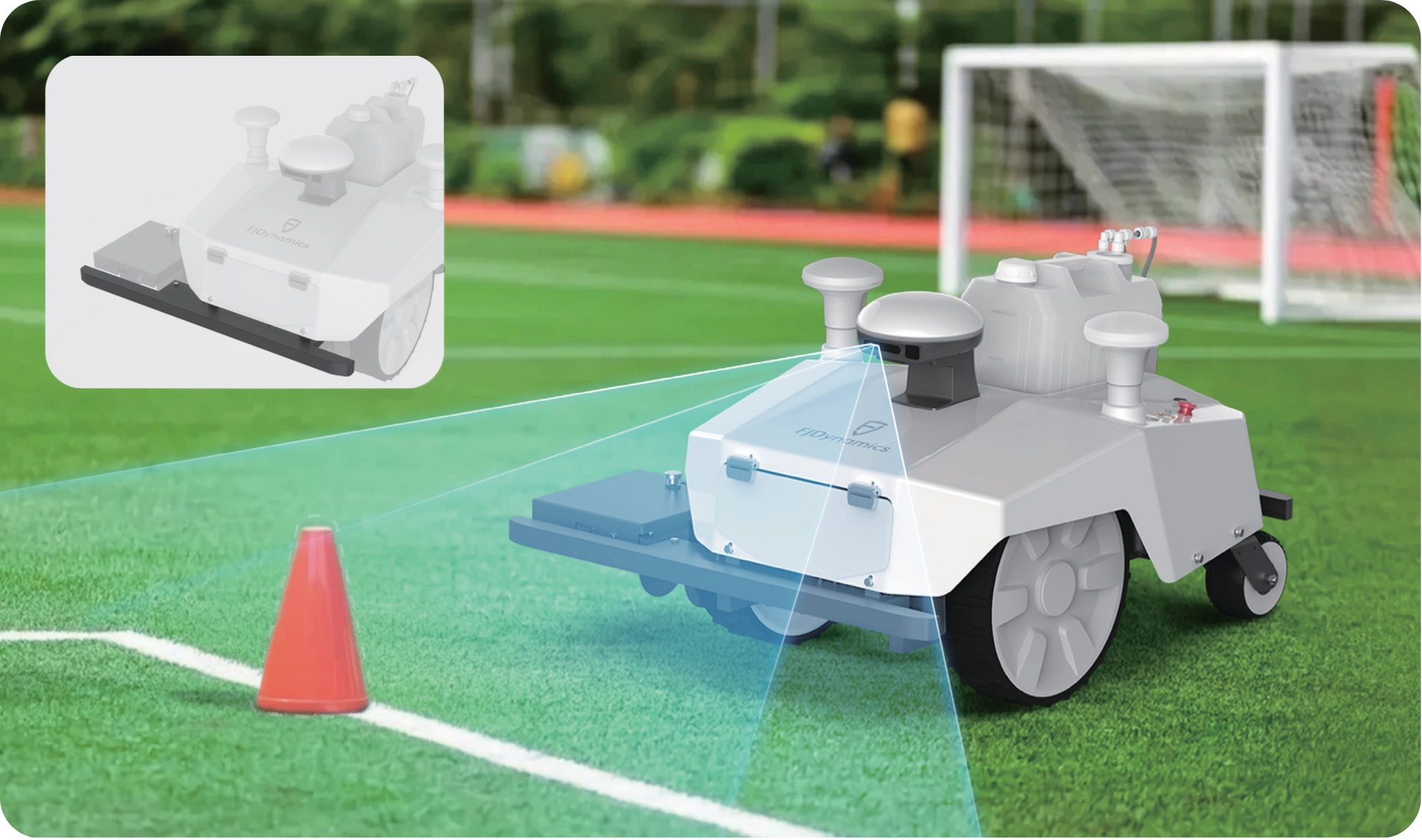

- Binocular-camera obstacle detection
- Automatic stop when an obstacle is detected
- Fast battery swapping
That means less setup friction between fields and less time standing beside the machine during operation.
Mark More. Measure Less.
PaintMaster Pro turns repetitive field layout and marking into a repeatable digital workflow.
Precise Autonomous Marking
Create and save field layouts, then let the robot follow the planned marking route automatically.
Manage Multiple Fields
Assign maps to individual machines, monitor jobs remotely, and automatically move through marking tasks across multiple fields.

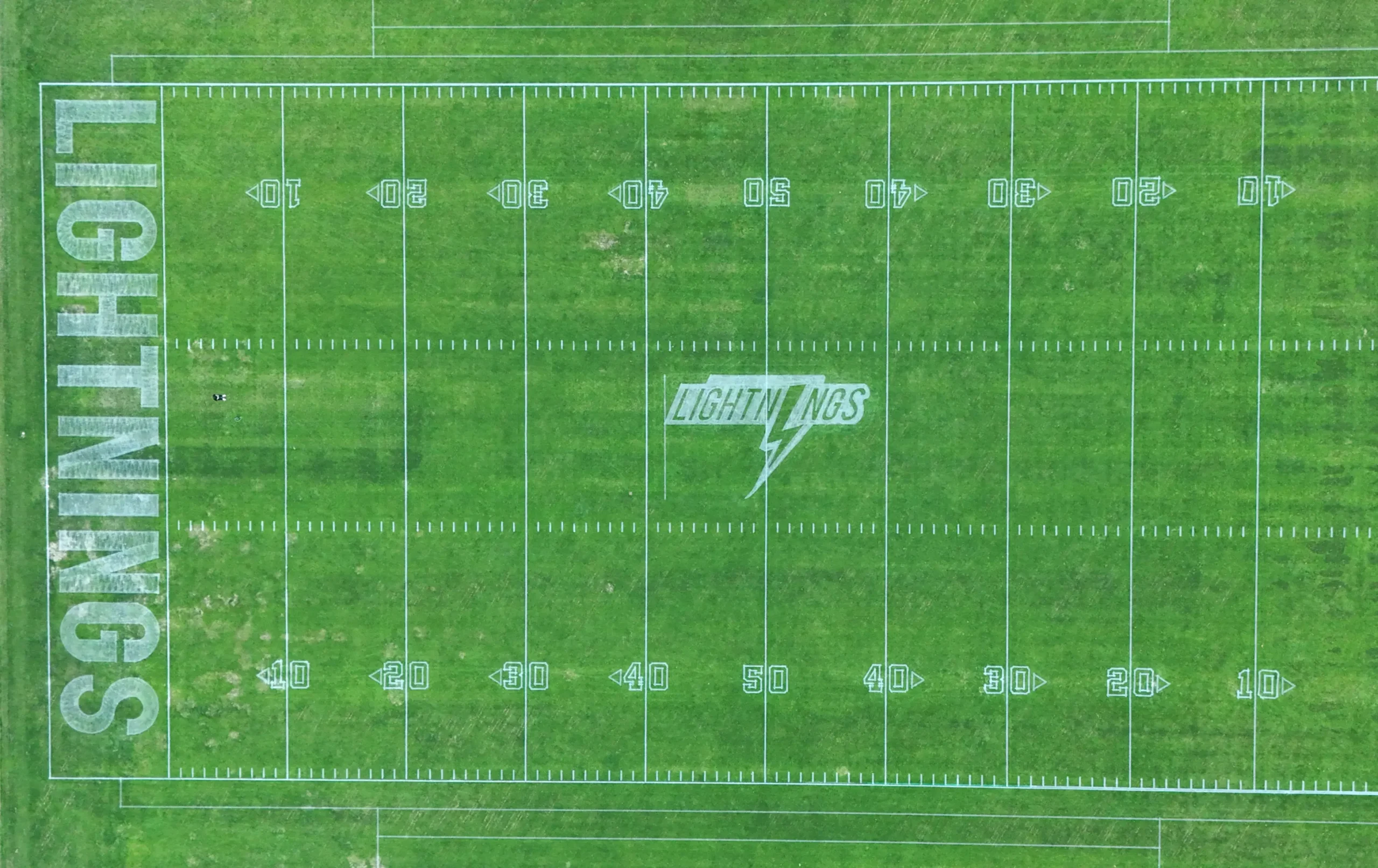

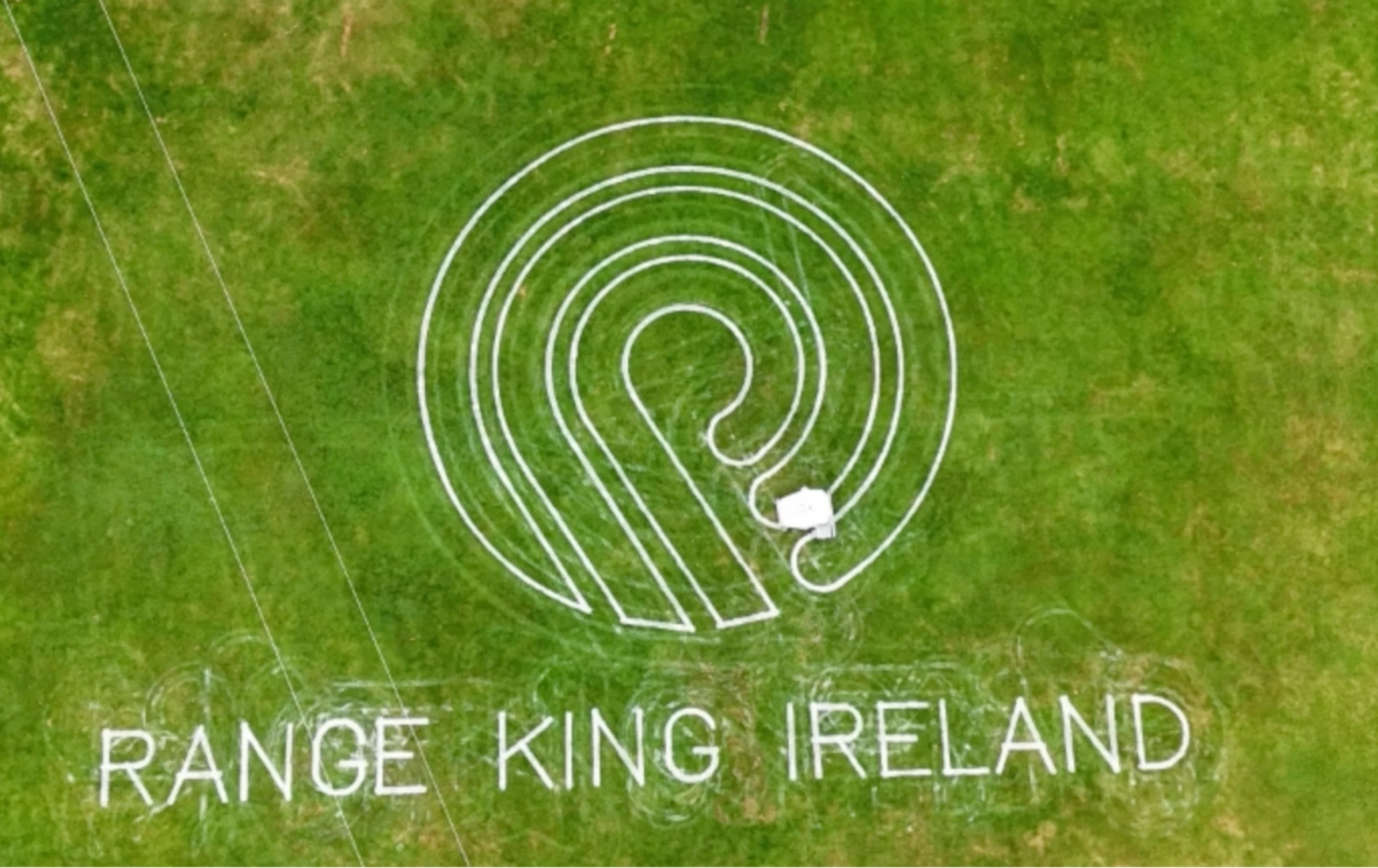

Custom Layouts & Logos
Go beyond standard boundary lines with support for custom field designs, graphics, and logos.
Built for Professional Workloads
A 20-liter paint tank, expandable battery options, and fast battery swapping help keep larger marking operations moving.
One Robot. Multiple Sports.
PaintMaster Pro supports marking applications including:
Soccer American Football Rugby Baseball Lacrosse Custom Field Layouts
For organizations managing multiple sports or frequently changing field configurations, saved digital maps can make repeat marking significantly more consistent.
Paint Master Pro Specifications
Specification PaintMaster Pro
Marking speed 1–3 km/h
Line width 6–17 cm / 2.4–6.7 in
Nozzle height 3–11 cm / 1.2–4.3 in
Paint capacity 20 L, expandable to 25 L
Standard battery 0.5 kWh
Expanded battery 1 kWh
Standard battery runtime Up to 5 hours
Standard charging time Approx. 2.2 hours
Fast battery swapping Supported
Weight without paint 73.4 kg / 161.8 lb
Dimensions 42.3 × 40.3 × 26.5 in
Operating temperature 5–45°C
